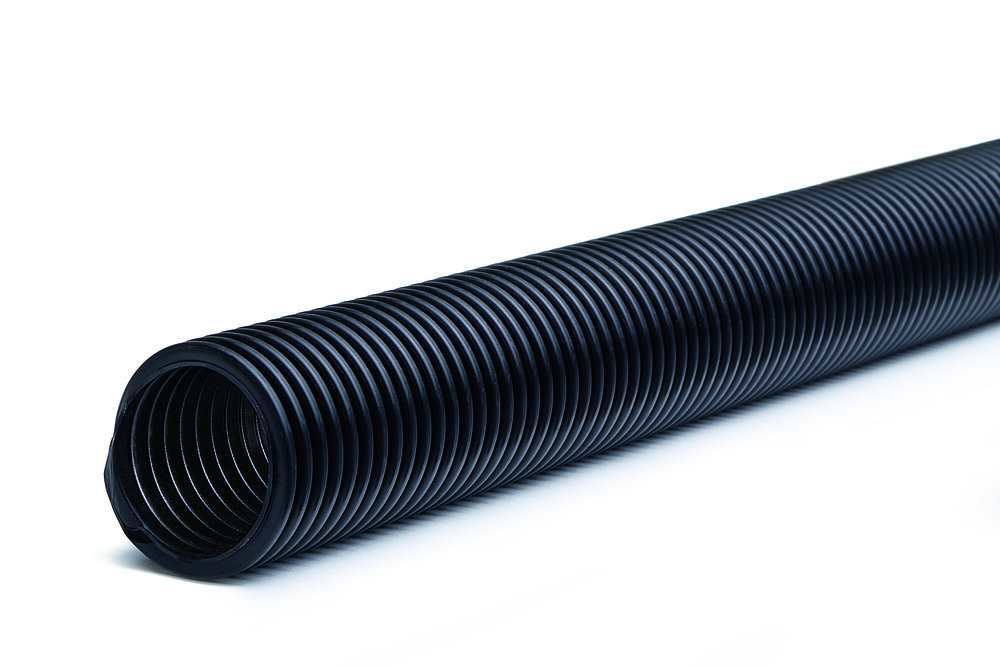

Very smooth inside profile hose made of antistatic modified TPO
| Inner Diameter (mm) | 32 - 50 |
|---|---|
| Bending Radius (mm) | 70 - 120 |
| Betriebsdruck Max. (bar) | 0.25 - 0.5 |
| Vakuum Max. (bar) | 0.25 - 0.5 |
| Weight (kg/m) | 0.31 - 0.47 |
| Length | 25 |
| Properties | smooth inside, corrugated outside, excellent flexibility, permanently antistatic, very good resilience when pressed or twisted |
|---|---|
| Construction | TPO, black, opaque, profile helix / solid profile helix |
| Temperature | -50°C up to 60°C |
Main usage |
|
|---|---|
| Schlauchtyp | granulate conveying hose, wood extraction hose, vacuum cleaning hose, |
| Fields of application | vacuum cleaner, industrial vacuum cleaners, cleaning, grinding machines, textile fiber extraction, wood dust extraction, extraction systems, agricultural technology, conveying technology, solvent vapor extraction, sprayers, dust extraction, |
| Sector | Cleaning, Energy & Waste, Wood & Timber, Construction, |
Properties |
|
Technical data |
|
| Schlauchkonstruktion | spiral hose / profile hose |
| Version | medium weight |
| Material | plastic |
| Wall Material (Outside) | TPO |
| Spiral (Material) | profile helix / solid profile helix |
| Layer Count | single-layer |
| Colour Hose | black |
| Ink Coverage Hose | opaque |
| Pitch | left hand thread |
Variants 3
Schlauchkonstruktion
Length
Inner Diameter (mm)
Betriebsdruck
Short
Short
Bending Radius (mm)
Weight (kg/m)
Vakuum
Max(bar)
Article Number
spiral hose / profile hose
25
32
0,50
70
0,31
0,50
6010320250
spiral hose / profile hose
25
38
0,40
80
0,37
0,40
6010380250
spiral hose / profile hose
25
50
0,25
120
0,47
0,25
6010500250
€421.25*
Content:
25 Meter
(€16.85* / 1 Meter)
€473.25*
Content:
25 Meter
(€18.93* / 1 Meter)
€502.00*
Content:
25 Meter
(€20.08* / 1 Meter)
Amount
APDatec 601 AS
Very smooth inside profile hose made of antistatic modified TPO
smooth inside, corrugated outside, excellent flexibility, permanently antistatic, very good resilience when pressed or twisted
